| EGCE-04 |
|

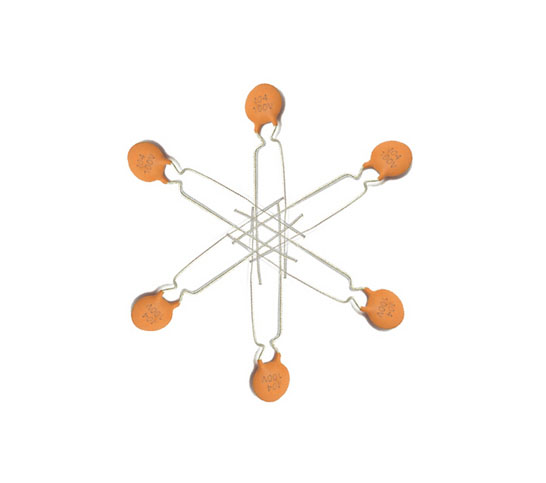

CERAMIC CAPACITOR Specifications | capacitance | 18pF~33000pF | | capacitance tolerance | K(¡À10%),M(¡À20%),Z(+80%-20%) | | operating temperature | -25¡ãC~85¡ãC | | temperature characteristic | Y5P,X7R,Y5U,Y5V,CH,SL,BN,Y5R | | rated voltage | 1KVDC,2KVDC,3KVDC | | dissipation factor (tg¦Ä) | Y5P,Y5U,Y5V: tg¦Ä¡Ü2.5%
BN: tg¦Ä¡Ü0.5%
Y5R: tg¦Ä¡Ü0.2%
SL:Cr<30pF,Q¡Ý400+20Cr;Cr¡Ý30pF,Q¡Ý1000
1MHz,1¡À0.2Vrms,25¡ãC
1KHz,1¡À0.2Vrms,25¡ãC | | insulation resistance (IR) | IR¡Ý10000M¦¸ @ 25¡ãC,500VDC | | voltage proof | 1.5Ur+500 | | testing voltage | 2 times the rated voltage or 1.5 times
the rated voltage +500V(whichever is smaller) | | encapsulation | 1KV: phenolic resin,epoxy resin ¡Ý2KV: epoxy resin | |
|
