Carbon Film Resistor Quick Detail:
• Temperature Range -55∼C ~ +155∼C
• ㊣5% tolerance
• High quality performance at economical prices
• Compatible with automatic insertion equipment
• Flame retardant type available
• Tin coated annealed copper wire
• Values below 1次 or above 10M次 are available by special request, please ask for details
Carbon Film Resistor Description:

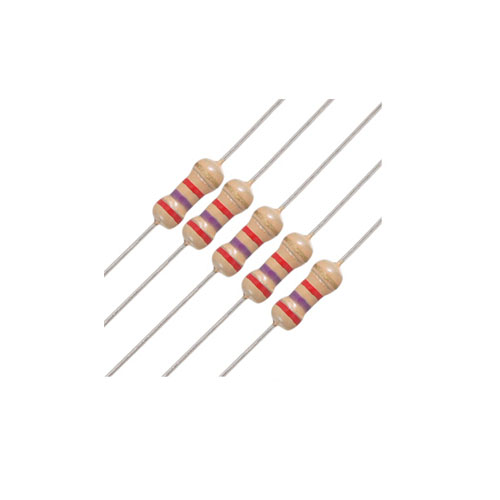

Carbon film resistors are a fixed form type resistor. They are constructed out of a ceramic carrier with a thin pure carbon film around it, that functions as resistive material.
Carbon Film Resistor Applications:
Can be installed into the power circuits of:
• Power supplies and inverters
• Uninterruptible Power Supplies
• Energy saving lamps
• Electronic Ballasts
• Filament Protection of various types of lamps
• Some types of heaters
• For higher power circuits ask about the MF73
and MF74 series surge suppressors.
Carbon Film Resistor Rated Power
Type | Rated power | Maximum working voltage | Maximum overload voltage | Dielectric withstanding voltage | Resistance Range(次) |
Normal size | MF1/8W | 0.125W | 150V | 300V | 300V | 1次~1M次 |
MF1/4W | 0.25W | 250V | 500V | 350V | 1次~10M次 |
MF1/2W | 0.5W | 300V | 700V | 400V | 1次~10M次 |
MF1W | 1W | 350V | 800V | 450V | 1次~10M次 |
MF2W | 2W | 500V | 800V | 450V | 1次~10M次 |
MF3W | 3W | 500V | 800V | 500V | 1次~10M次 |
MF5W | 5W | 500V | 1000V | 500V | 1次~10M次 |
Small size | MF1/4WS | 0.25W | 150V | 300V | 300V | 1次~10M次 |
MF1/2WS | 0.5W | 250V | 700V | 350V | 1次~10M次 |
MF1WS | 1W | 300V | 800V | 400V | 1次~10M次 |
MF2WS | 2W | 350V | 800V | 450V | 1次~10M次 |
MF3WS | 3W | 500V | 1000V | 450V | 1次~10M次 |
MF5WS | 5W | 500V | 1000V | 500V | 1次~10M次 |
