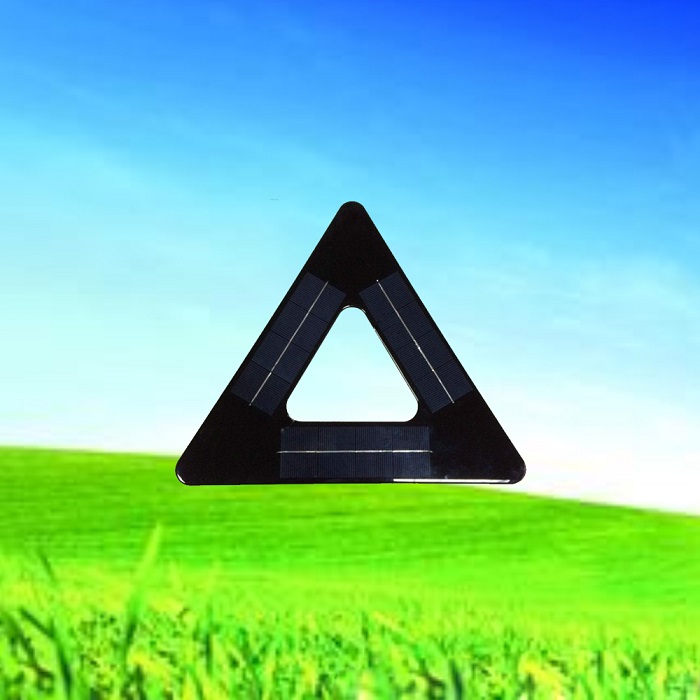

| 4W Regular Triangle Solar Panel Èý½Ç |
| Specifications: | |
| Product Type: | Epoxy Solar Panel |
| Model No.: | SBET360 |
| Product Construction: | Epoxy Resin + Cell + PCB |
| Maximum Output: | 6V 4W |
| Tolerance: | ¡À3% |
| Maximum Output Power (Wmp) | 4W |
| Max Working Voltage (Vmp) | 6V |
| Max Charging Current (Imp) | 670mA |
| Open Circuit Voltage (Voc) | 7.2V |
| Short Circuit Current (Isc) | 730mA |
| Cell efficiency(¦Ç): | 16% |
| Solar cell type: | Polycrystalline |
| PCB | FR-4 |
| PCB thickness(mm) | 1.5mm |
| PCB color | Black |
| PCB size(mm) | Side length 360mm |
| Product thickness: | 3mm |
| Barline: | Black tape or none |
| Appearance: | Transparent and good polish, |
| without distortion and loss |
| Lifetime: | 1-2 years |
