KD-110

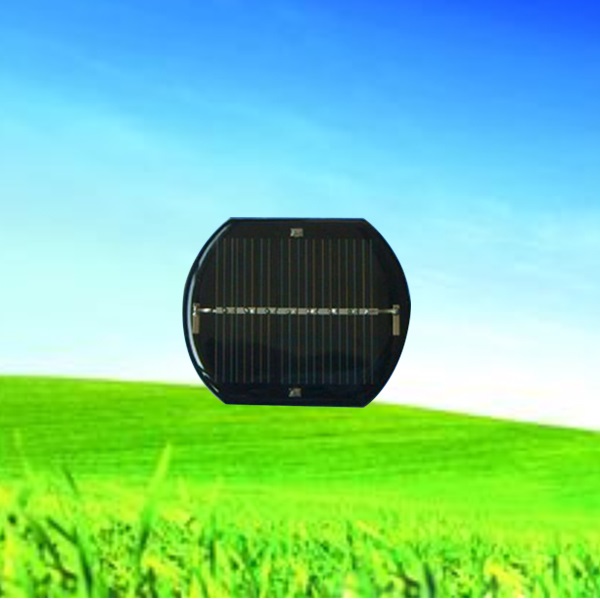

KD-110    4V 125mA high efficiency solar panel

Specification:
Maximum power[Pmax]:                 0.5W¡À0.018W
Voltage at Pmax[Vmp]:                   4V¡À0.3V
Current at Pmax[Imp]:                    125mA¡À3.3mA
Short-circuit current[Isc]:                139mA
Open-circuit voltage[Voc]:               4.8V¡À0.31V
Temperature coefficient of Isc:        (0.065¡À0.015)%/oC
Temperature coefficient of Voc:       -(80¡À10)mV/oC
Temperature coefficient of power:   - (0.5¡À0.05)%/oC
