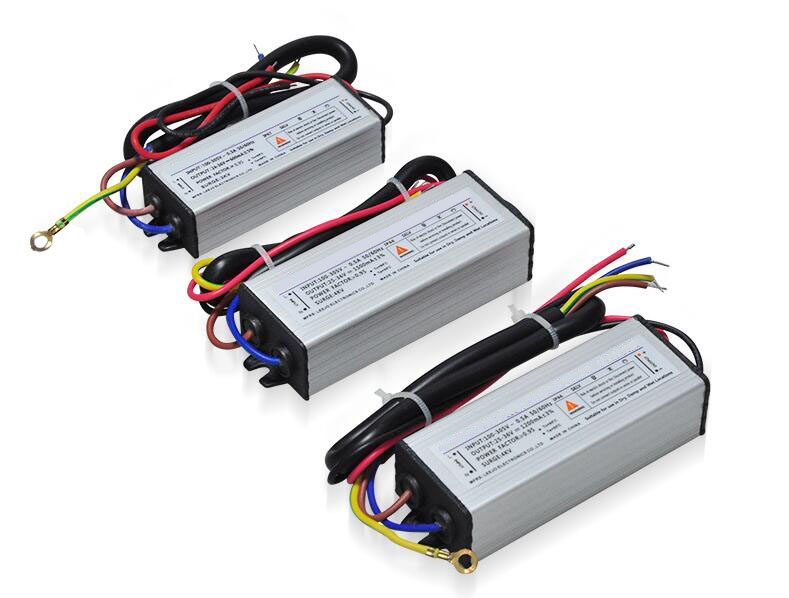

EA-BLF series

ITEM NO.: POWER INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT CONVERSION EFFICENCY SIZE
EA-BLF01 4-7*1W AC85-265V 12-23V 300mA¡À3% 85% 65*30*22mm
EA-BLF02 8-12*1W AC85-265V 24-43V 300mA¡À3% 85% 78*31*20mm
EA-BLF03 8-12*1W AC85-305V 24-43V 300mA¡À3% 85% 78*31*20mm
EA-BLF04 4-6*2W AC85-265V 12-22V 600mA¡À3% 85% 78*31*20mm
EA-BLF05 4-6*2W AC85-305V 12-22V 600mA¡À3% 85% 78*31*20mm
EA-BLF06 12-18*1W AC85-305V 36-65V 300mA¡À3% 85% 93*30*20mm
EA-BLF07 20W AC85-305V 30-40V 600mA¡À3% 88% 93*30*20mm
EA-BLF08 8-14*2W AC85-305V 24-46V 600mA¡À3% 85% 93*30*23mm
EA-BLF09 18-25*1W AC85-305V 54-90V 300mA¡À3% 85% 93*30*23mm
EA-BLF10 30W AC85-305V 30-42V 900mA¡À3% 88% 95*30*23mm
EA-BLF1101 25-36*1W AC85-305V 75-130V 300mA¡À3% 85% 102*30*23mm
EA-BLF1102 40W AC85-305V 30-38V 1.2A¡À3% 89% 93*30*23mm
EA-BLF12 40W AC85-305V 30-38V 1.2A¡À3% 89% 105*37*25mm
EA-BLF1301 40W AC85-305V 30-38V 1.2A¡À3% 89% 110*39*30mm
EA-BLF1302 50W AC85-305V 30-38V 1.5A¡À3% 89% 93*30*23mm
EA-BLF14 50W AC85-305V 30-38V 1.5A¡À3% 89% 105*37*25mm
EA-BLF15 50W AC85-305V 30-38V 1.5A¡À3% 89% 110*39*30mm
EA-BLF16 60W AC85-305V 30-38V 1.8A¡À3% 89% 124*39*30mm
EA-BLF26 14-18*2W AC85-305V 36-58V 600mA¡À3% 88% 105*30*25mm
EA-BLF29 42W AC85-305V 36-48V 900mA¡À3% 88% 105*37*25mm
EA-BLF31 56W AC85-305V 36-48V 1.2A¡À3% 88% 105*37*25mm
