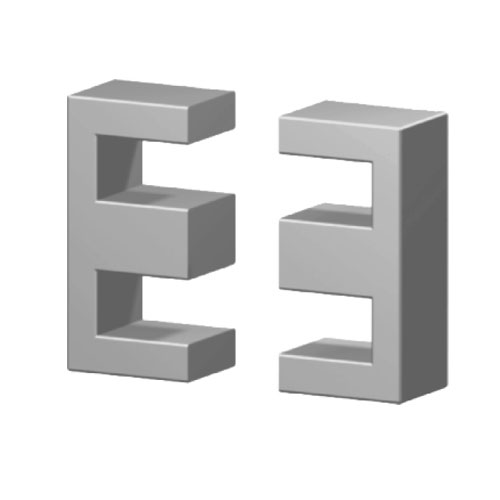

EE TYPE CORE |
|
False False Bitmap False False Bitmap | EE TYPE CORES | CORE TYPE | Dimensions(m/m) | A | B | C | D(min) | E | F | EE5 | 5.25±0.1 | 5.3±0.16 | 1.95±0.1 | 3.75 | 1.35±0.08 | 4±0.16 | EE6.3 | 6.17±0.13 | 5.7±0.1 | 1.96±0.05 | 3.70±0.1 | 1.35±0.1 | 3.86±0.1 | EE8.3 | 8.3±0.3 | 8.0±0.2 | 3.6±0.2 | 6.0 | 2.0-3.0 | 6.0±0.2 | EE8.8 | 9.0±0.3 | 8.0±0.2 | 2.0±0.1 | 5.20±0.13 | 1.90±0.12 | 4.05±0.3 | |
|
