EGCA-01

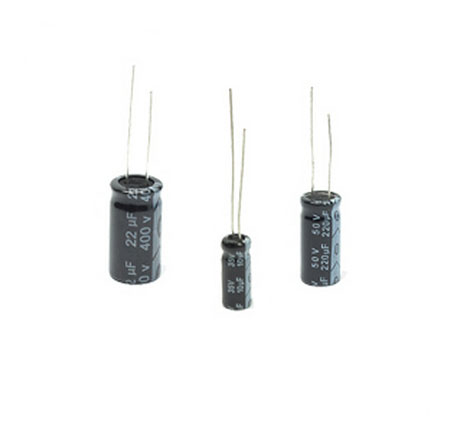

 Aluminum Electrolytic Capacitor
Items Characteristics
Category Temperature Range -40 ~ 105¡ãC
Rated Voltage Range 6.3 ~ 100Vdc
Capacitance Tolerance ¡À 20% (M) (at 20¡¯C ,120Hz)
Leakage Current 1¡Ü0.01CV or 3 uA whichever is greater Where 1: Max. leakage current(uA). C: Nominal capacitance(uF), V: Rated voltage(V) (at 20C after 2 minutes)
Dissipation Factor (tan 6) Rated Voltage (Vdc) 6.3 10 16 25 35 50 63 100
tan ¦Ä (max) 0.22 0.19 0.16 0.14 0.12 0.1 0.09 0.08
When nominal capacitance exceeds 1,000uF, add 0.02 to the value above for each 1,000uF increase

Low Temperature

Characteristics (Max,

Impedance Ratio)

Rated Voltage (Vdc) 6.3 10 16 25 35 50 63 100
Z (-25 ¡ãC) /Z (+20¡ãC) 4 3 2
Z (-40 ¡ãC) /Z (+20 ¡ãC) 8 6 4 3
Endurance The following specification shall be satisfied when the capacitors are restored to 20¡ãC after subjected to DC voltage with the rated ripple current is applied for the specified of time 105¡ãC
  Case dia life time(hours)
Capacitancechange ¡Ü+20% of the initial value(6.3V,10V:¡Ü+30%)   6.3-10V 16-100V
D.F.(tan ¦Ä) ¡Ü200% of the initial specified value ¦µD¡Ü6.3 4,000 5,000
Leakage current ¡Üthe initial specified value ¦µD=8&10 6,000 7,000
              ¦µD¡Ý12.5 8,000 10,000
Shelf life The following specification shall be satisfied when the capacitors are restored to 20¡ãC after exposing them for 1000 hours at 105¡ãC without voltage applied.
Capacitancechange ¡Ü+20% of the initial value(6.3V,10V:¡Ü+30%)
D.F.(tan ¦Ä) ¡Ü200% of the initial specified value
Leakage current ¡Ü200% initial specified value
