EGME-04

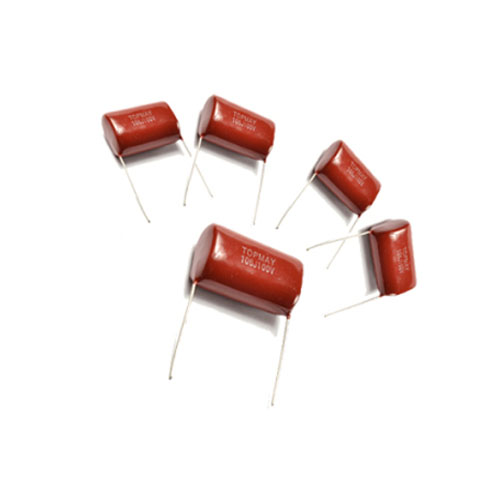

Metallized Polypropylene Film Capacitor Type CBB21

Are non-inductively wound or stacked with metallized polypropylene film as dielectric/electrode
with copper-clad steel leads and epoxy resin coating.

Features
1.Low dissipation factor high insulation resistance.
2.High stability of capacitance and DF versus temperature and frequency.
3.Low loss at high frequency/Small inherent temperature rise.

Typical Applications
1.Widely used in high frequency ,DC ,AC and pulse circuits.
2.Suitable for the situation where applies high frequency and high current pulse.
3.Large-screen displays and TV S correct circuit design
4.Electronic devices, differential motor, electric tools, lighting,air conditioner, refrigerator,washing machine and household appliances and power system.



Specifications:

Reference Standards:

GB10190-88, GB/T14579 (IEC60384-17)

Rated Voltage(UR):

100VDC;250VDC;400VDC;630VDC;1000VDC

Climate Category

40/105/21

Rated Temperature

85C

Operation Temperature Range:

-40C - +105C (+85C to +105C, decreasing factor 1.25% perC for VR (dc))

Capacitance Range:

0.001F C 8.2F

Capacitance Tolerance Range:

J(5%);K(10%);M(20%)

Dielectric:

Polypropylene Film

(25C5C)

Dissipation Factor Tan:

C1µF   0.1%       (10KHZ)

C>1µF   0.1%       (1KHZ)

Insulation Resistance(Between Terminals):

100VDC,Min   C0.33µF       50000M

                >0.33µF           15000 MS

Withstand Voltage:

1.6UR(5S)

Life. Test Conditions:

852C,1.25UR,1,000Hours

Capacitance Drift: ܡ3%  Of the initial value

Dissipation Factor       50%(1KHz)
